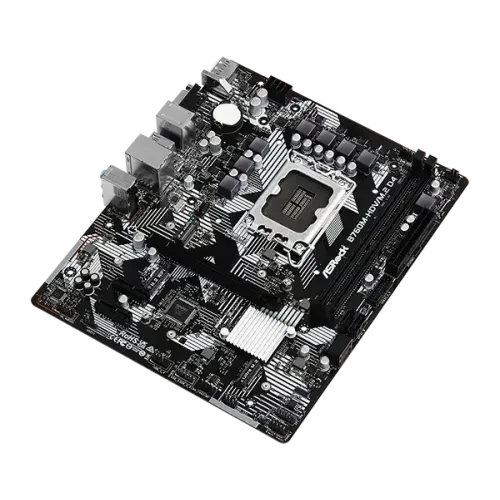

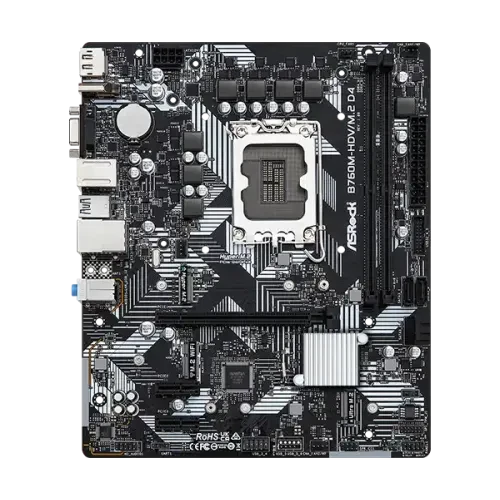

ASRock B760M-HDV/M.2 D4 Micro ATX Motherboard

(0) 0 Reviews 0 Orders 0 Wish listed

Product Code: 168994

Key Features

Model: B760M-HDV/M.2 D4
Supported CPU: 14th, 13th & 12th Gen Intel Core Processors (LGA1700)
Supported RAM: 2x DDR4, Max 64GB 5333+(OC)
Graphics Output: 1x HDMI, 1x DisplayPort, 1x D-Sub
Features: Realtek 1G LAN

Quantity :

Product price : ৳15,000.00

Left To Confirm : 1

Offer ending in

This deal has been expired

Overview
Reviews

Specification

Basic Information
Supported CPU	Supports 14th Gen, 13th & 12th Gen and next-gen Intel Core Processors (LGA1700) Supports Intel Hybrid Technology Supports Intel Turbo Boost Max 3.0 Technology Supports Intel Thermal Velocity Boost (TVB) Supports Intel Adaptive Boost Technology (ABT)
Chipset	Intel B760
BIOS	128Mb AMI UEFI Legal BIOS with GUI support
Form Factor	Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm
Audio	7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Expansion Slots
PCI	CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Memory
Type	DDR4
Slots	2
Supported Memory	Dual Channel DDR4 Memory Technology Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC) Supports ECC UDIMM memory modules (operate in non-ECC mode) Supports Intel Extreme Memory Profile (XMP) 2.0 1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively. 1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively.
Maximum Memory	64GB
Graphics
Graphics	Intel Xe Graphics Architecture (Gen 12) 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz
Connector & Ports
HDMI	1x HDMI
Display Port (s)	1x DisplayPort
D-Sub (s)	1 x D-Sub
USB (s)	1 x USB 3.2 Gen1 Type-C (Rear) 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) 5 x USB 2.0 (2 Rear, 3 Front) * All USB ports support ESD Protection
LAN Port (s)	Gigabit LAN 10/100/1000 Mb/s Realtek 8111H
Supported Storage	CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* - 4 x SATA3 6.0 Gb/s Connectors
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio	HD Audio Jacks: Line in / Front Speaker / Microphone
Internal I/O Ports	1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin) 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
TPM (Trusted Platform Module )	1 x SPI TPM Header
Others
Special Features	Rock-Solid Durability - 5+1+1 Power Phase EZ Update - ASRock Auto Driver Installer
Bundled Software	Software - ASRock Motherboard Utility (A-Tuning) - ASRock XFast LAN UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer
Warranty Information
Manufacturing Warranty	3 years

Description

ASRock B760M-HDV/M.2 D4 Micro ATX Motherboard

The ASRock B760M-HDV/M.2 D4 Motherboard supports 14th, 13th and 12th Gen Intel Core processors on the LGA1700 socket. With its 5+1+1 Power Phase design, it ensures stable power delivery for optimal performance. This motherboard supports speedy DDR4 memory clocked at 5333MHz (OC), allowing for smooth multitasking and efficient data handling. This 14th Gen Motherboard offers a range of expansion options, including 1 PCIe 4.0 x16 slot, 2 PCIe 3.0 x1 slots, and 1 M.2 Key E slot for WiFi connectivity. For graphics output, you have multiple choices with HDMI, DisplayPort, and D-Sub options. The Realtek ALC887/897 7.1 CH HD Audio Codec provides excellent audio quality for an immersive sound experience. It offers 4 SATA3 ports, 1 Hyper M.2 (PCIe Gen4x4), and 1 Ultra M.2 (PCIe Gen3x4 & SATA), ensuring you have plenty of options for connecting storage devices. The motherboard also features a convenient array of USB ports, including 1 USB 3.2 Gen1 Type-C at the rear, 5 USB 3.2 Gen1 Type-A (3 at the rear, 2 at the front), and 5 USB 2.0 ports (2 at the rear, 3 at the front). ASRock B760M-HDV/M.2 D4 Motherboard includes Realtek 1G LAN for reliable and high-speed networking. The ASRock Auto Driver Installer simplifies driver installation, making it user-friendly and convenient.

Buy ASRock B760M-HDV/M.2 D4 Micro ATX Motherboard From Fast Deals

In Bangladesh, you can get the original ASRock B760M-HDV/M.2 D4 Micro ATX Motherboard From Fast Deals. We have a large collection of the latest ASRock Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Fast Deals Shop to get yours at the lowest price. The ASRock B760M-HDV/M.2 D4 Motherboard comes with 3 years warranty.

What is the price of ASRock B760M-HDV/M.2 D4 Micro ATX Motherboard in Bangladesh?

The latest price of ASRock B760M-HDV/M.2 D4 Micro ATX Motherboard in Bangladesh is 13,500৳. You can buy the ASRock B760M-HDV/M.2 D4 Micro ATX Motherboard at best price from our website or visit any of our showrooms.
